H20 Wooden Beam Clamp
Clamp fixing H20 beams to walers, quick release, high holding force.
Factory Direct
CNC In-House
Batch QC Reports
OEM to Drawing
1 / 3Climbing Cones & Sleeves

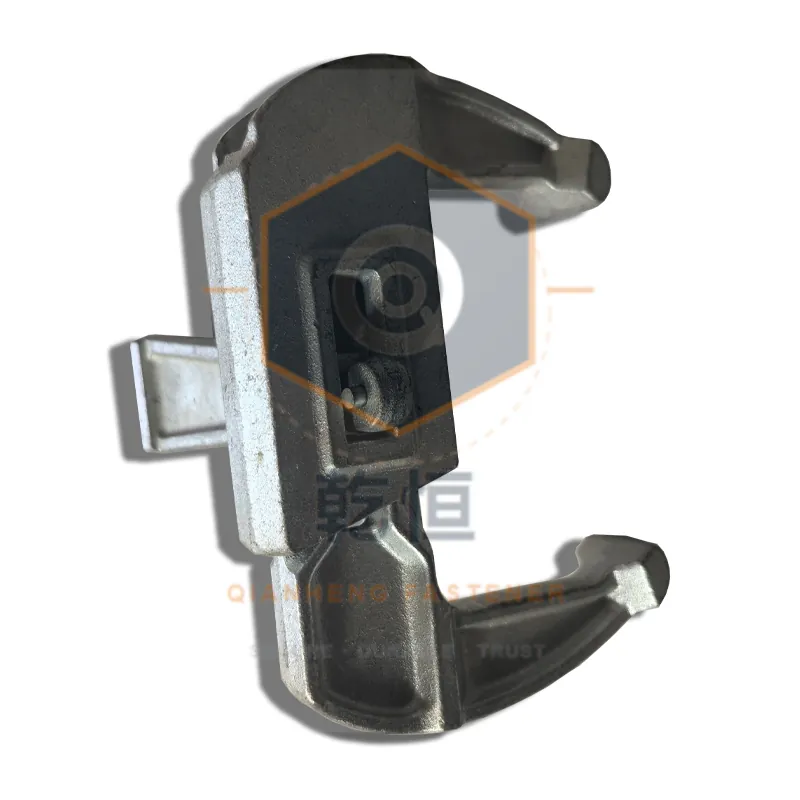

H20 Wooden Beam Clamp
Hünnebeck-style H20 timber beam clamp: a Q235 U-clamp with ductile iron (QT450-10) left/right hooks tightened by wing nut. It locks the H20 beam to the steel waling at any position, with adjustable grip range and a working load up to ~1,000 kg in heavy-duty configurations. Speeds up large-area wall formwork assembly.
Specifications
- Fits H20 beam flange
- Q235 U-body + QT450-10 hooks
- Wing-nut quick lock
- Adjustable grip range
- Up to ~1,000 kg heavy-duty load
Engineering-reviewed quote within 24 hours.
Technical Specifications
| Beam | H20 timber beam (80mm flange) |
| Material | Q235 U-clamp, QT450-10 hooks |
| Adjust | Adjustable grip for various beam sizes |
| Load | Up to ~1,000 kg (heavy-duty config) |
| Finish | Zinc plated / painted |
| Packaging | Bulk in cartons |
Material45# steel
Surface FinishPlain (black) · Zinc plated
Rated LoadClamping force per H20 beam type — verify with system supplier
Unit WeightD15/10# clamp: 0.55 kg per piece
PackagingCartons on pallet · marked per BOM
Production Process
01
02
03
04
05
06Material Grades Explained
| Grade | Notes |
|---|---|
| Q235 | Plain carbon steel. Economic option for light and medium formwork loads. Not heat treated. |
| 45# | Medium carbon steel. The standard formwork tie rod grade in China; quenchable to class 8.8. |
| 40Cr | Alloy steel. Higher hardenability and better fatigue performance than 45#; used where repeated reuse matters. |
| Class 10.9 bolt | Quenched and tempered alloy steel bolt used in the climbing cone set. Not electroplated without a documented baking cycle. |
| QT450-10 | Ductile (nodular) iron with 450 MPa tensile and 10% elongation. Used for sleeves and embedded plates where toughness and castability matter. |
| HRB400 | Hot-rolled ribbed bar (threaded steel) to Chinese standard. Used for embedded foot bolts; good bond with concrete. |
Applications
Procurement Guide
- Confirm beam flange size and waling spacing
- Check clamp count per panel with your formwork layout
- For heavy loads, use two clamps per connection point
- Order spare hooks — they wear with repeated use
Procurement Information
- OEM / Custom
- Own drawing or label welcome
- MOQ
- Trial orders OK · mixed SKU welcome
- Lead time
- Stock 7-30d · Custom 20-35d
- Packaging
- Seaworthy: pallet + strapping + waterproof
- Payment
- T/T · L/C at sight
- Incoterms
- FOB Tianjin · CIF · CFR · EXW
