Square Base Plate
Hot-dip galvanized base plates with matched anchor sets for foundations.
Factory Direct
CNC In-House
Batch QC Reports
OEM to Drawing
1 / 3Other Accessories
Square Base Plate

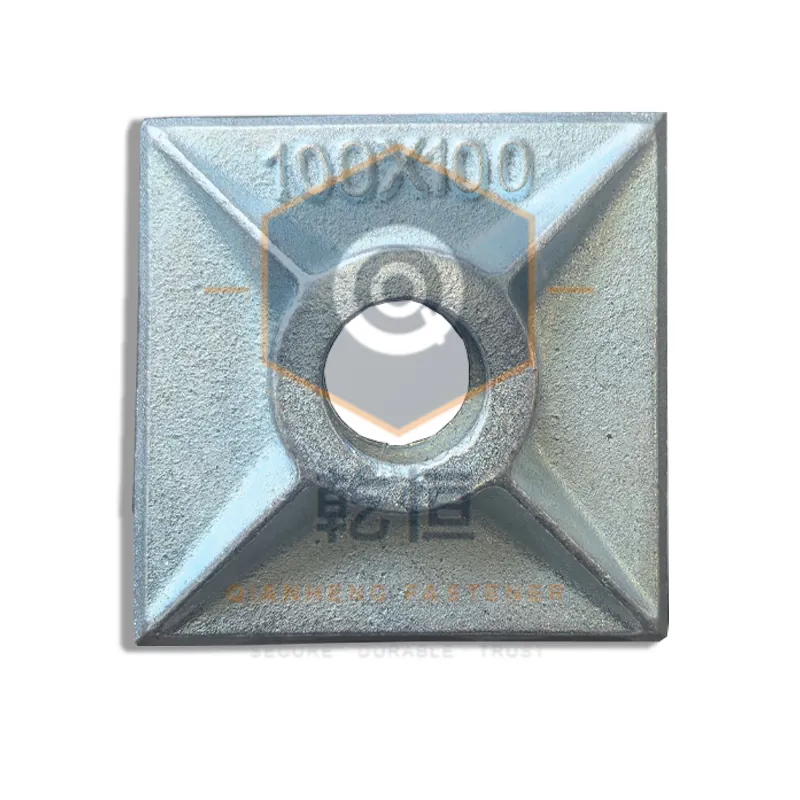

Hot-stamped square plate washer per DIN 436 practice, in standard 100×100×8mm (and 50×50, 120×120) sizes with hole diameters matched to D15/D20/D26.5 rods. Dome and flat variants available; weight 390–640g depending on size. Spreads clamping force and prevents panel damage on plywood and steel formwork.
Specifications
- 100×100×8mm standard (50×50 / 120×120 options)
- Hole matched to D15–D26.5 rods
- Hot-stamped carbon steel
- Flat or dome profile
- Plain, zinc or HDG
Prices are quoted based on product specifications, material/grade, quantity, destination and current market conditions. Contact us for the latest quotation.
Engineering-reviewed quote within 24 hours.
Technical Specifications
| Size | 100×100×8mm standard |
| Hole | Ø10–Ø30 per rod |
| Material | Carbon steel, hot-stamped |
| Profile | Flat or dome (waler plate) |
| Weight | 390–640g per size |
| Surface | Plain / zinc / HDG |
MaterialQ235 / 45# steel plate
Surface FinishHot-dip galvanized (45-85 µm) · Plain
Rated LoadGoverned by anchor assembly — see drawing
Unit Weight120 × 120 mm plate: 0.98 kg per piece
PackagingCartons on pallet · marked per BOM
Production Process
01
02
03
04
05
06Material Grades Explained
| Grade | Notes |
|---|---|
| Q235 | Plain carbon steel. Economic option for light and medium formwork loads. Not heat treated. |
| 45# | Medium carbon steel. The standard formwork tie rod grade in China; quenchable to class 8.8. |
| 40Cr | Alloy steel. Higher hardenability and better fatigue performance than 45#; used where repeated reuse matters. |
| Class 10.9 bolt | Quenched and tempered alloy steel bolt used in the climbing cone set. Not electroplated without a documented baking cycle. |
| QT450-10 | Ductile (nodular) iron with 450 MPa tensile and 10% elongation. Used for sleeves and embedded plates where toughness and castability matter. |
| HRB400 | Hot-rolled ribbed bar (threaded steel) to Chinese standard. Used for embedded foot bolts; good bond with concrete. |
Applications
Procurement Guide
- Choose plate size by rod force and panel material
- Always use under nuts on timber panels
- Confirm hole diameter matches your rod
Procurement Information
- OEM / Custom
- Own drawing or label welcome
- MOQ
- Trial orders OK · mixed SKU welcome
- Lead time
- Stock 3d · Custom 7-15d
- Packaging
- Seaworthy: pallet + strapping + waterproof
- Payment
- T/T · L/C at sight
- Incoterms
- FOB Tianjin · CIF · CFR · EXW
Related Products
Technical FAQ
Square Base Plate — Answers for Engineers and Buyers
A formwork tie rod is a high-strength threaded bar that, together with nuts, anchor plates and walers, holds formwork panels against the lateral pressure of fresh concrete. It passes through the wall section and is either fully recovered after stripping (through-tie used with a sleeve) or permanently embedded (lost-end / water-stop type).
