Plum Washer
Plum (corrugated) washers that lock the wing nut against vibration.
Factory Direct
CNC In-House
Batch QC Reports
OEM to Drawing
1 / 3Nuts, Washers & Accessories
Plum Washer

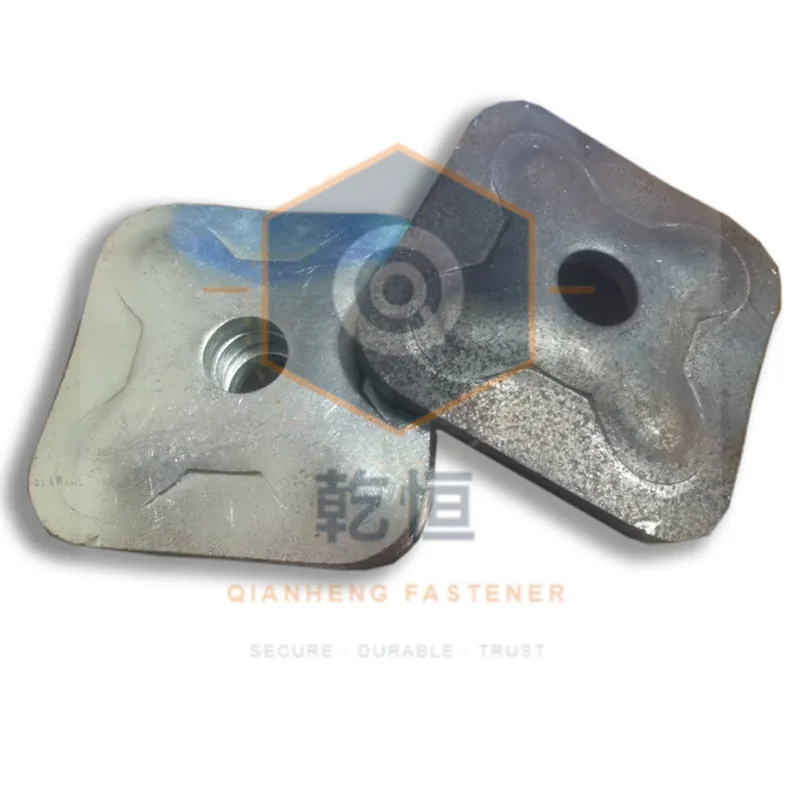

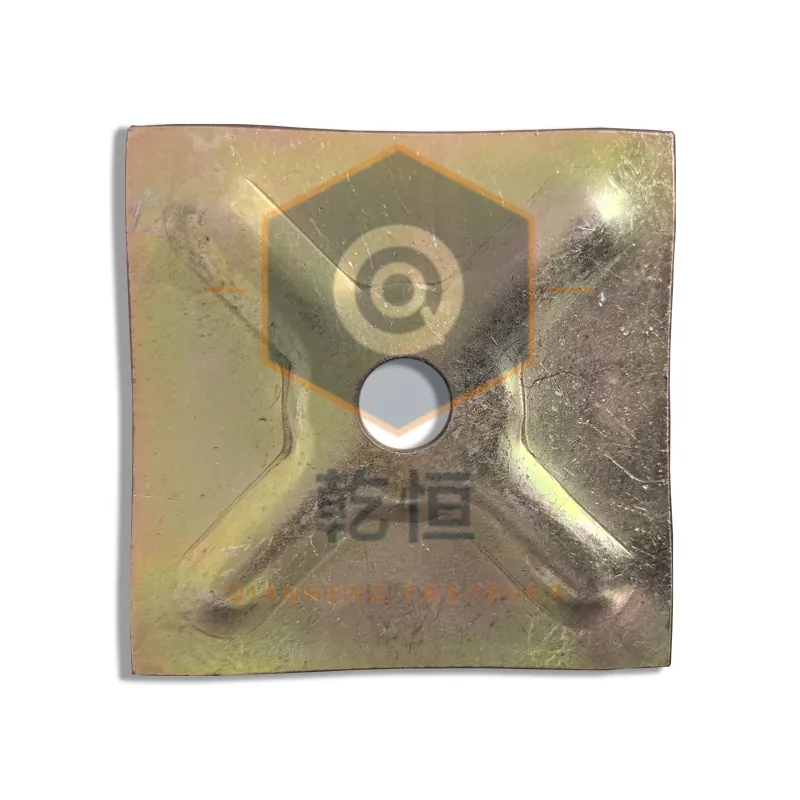

Heat-treated spring steel washer with a lobed inner profile that bites into the rod thread, maintaining nut preload during concrete vibration. The flower-shaped body also spreads load on the panel. Anti-rust finish; standard sizes for D15/D20 tie rods.
Specifications
- D15 / D20 tie rods
- Lobed thread-gripping profile
- Heat-treated spring steel
- Anti-loosening under vibration
- Anti-rust finish
Engineering-reviewed quote within 24 hours.
Technical Specifications
| Thread | M15 / M20 |
| Material | Heat-treated spring steel |
| Function | Thread-gripping anti-loosening washer |
| Surface | Phosphate / zinc |
| Packaging | Bulk bags |
MaterialQ235 / 45# steel
Surface FinishPlain (black) · Zinc plated
Rated LoadBearing element — rated by system load
Unit WeightSquare washer 120 × 120: 0.98 kg · channel washer 60 × 140: 0.7 kg
PackagingCartons on pallet · marked per BOM
Accessory Weights
| Name | Spec | Weight | Material | Surface |
|---|---|---|---|---|
| Tie rod (high strength) | D15 × 1000 | 1.5 kg | Q235 · 45# · 40Cr | Black / zinc / HDG |
| Tie rod (high strength) | D20 × 1000 | 2.6 kg | Q235 · 45# · 40Cr | Black / zinc / HDG |
| Tie rod section | D15 × 250 | 0.375 kg | 45# | Black / zinc |
| Wing nut (shanxing nut) | D15 | 0.32 kg | 45# / QT450-10 | Black / zinc |
| Wing nut (shanxing nut) | D20 | 0.8 kg | 45# / QT450-10 | Black / zinc |
| Connecting nut | D20 × 110 | 0.8 kg | QT450-10 / 45# | Zinc plated |
| Disc nut | D20 × 50 × 110 | 0.92 kg | QT450-10 | Black / zinc |
| Disc (round plate) | D15 × 100 | 0.53 kg | Q235 / 45# | Black |
| Square washer | 120 × 120 | 0.98 kg | Q235 | Black / zinc |
| Channel washer | 60 × 140 | 0.7 kg | Q235 / 45# | Black |
| Embedded plate | D20 × 67 × 96 | 0.6 kg | QT450-10 | Black / zinc |
| Cone (climbing) | D20 × 33 × 59 × 110 | 0.93 kg | 45# | Black / zinc |
| Waler fastener (backing plank clip) | D15 / 10# | 0.55 kg | 45# | Black / quenched version |
| Embedded foot bolt (single-sided) | D25 × 700 | 2.4 kg | HRB400 ribbed bar | Black / zinc |
| Hex nut | D15 / across-flats 23-25 | — | 45# | Black / zinc |
| Hex nut (tall) | D15 / height 37 / AF 25 | — | 45# | Black / zinc |
| Hex nut | D15 / across-flats 50-25 | — | 45# | Black / zinc |
| Hex nut | D20 / across-flats 23-31 | — | 45# | Black / zinc |
| Hex nut | D20 / across-flats 50-32 | — | 45# | Black / zinc |
