One-Side Formwork Adjustable Prop
Diagonal support and height adjustment for one-side forming; keeps walls plumb.
Factory Direct
CNC In-House
Batch QC Reports
OEM to Drawing
1 / 3One-Side Formwork Accessories
One-Side Formwork Adjustable Prop

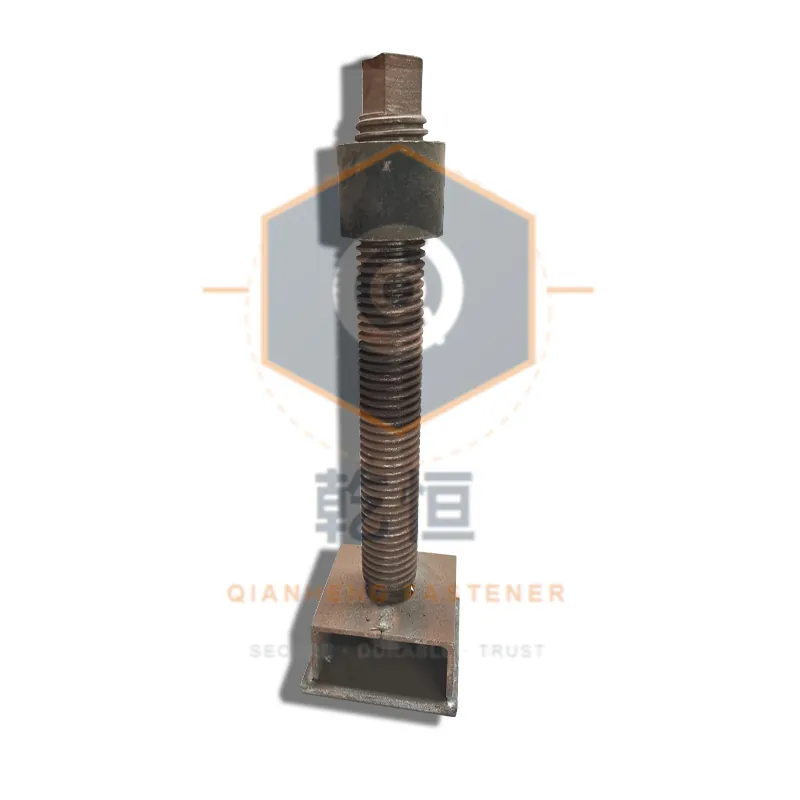

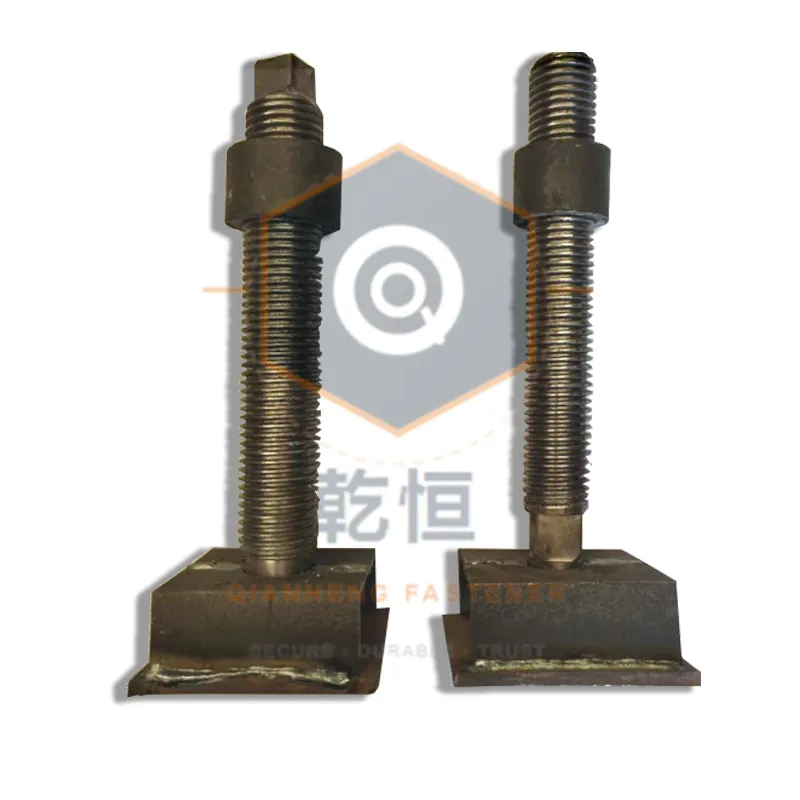

A screw-type adjustable leg for leveling formwork props and falsework. The threaded adjustment gives fine height control for slab and falsework support.
Specifications
- Screw-type height adjustment
- For props and falsework
- Various sizes available
- Load per system (Inquire)
Prices are quoted based on product specifications, material/grade, quantity, destination and current market conditions. Contact us for the latest quotation.
Engineering-reviewed quote within 24 hours.
Technical Specifications
| Material | Q235 / 45# steel |
| Adjust | Screw type |
| Surface | Galvanized / painted |
MaterialQ235 / 45# steel
Surface FinishGalvanized · Painted
Rated LoadInquire
Unit WeightInquire
PackagingBundled on pallet
Production Process
01
02
03
04
05
06Material Grades Explained
| Grade | Notes |
|---|---|
| Q235 | Plain carbon steel. Economic option for light and medium formwork loads. Not heat treated. |
| 45# | Medium carbon steel. The standard formwork tie rod grade in China; quenchable to class 8.8. |
| 40Cr | Alloy steel. Higher hardenability and better fatigue performance than 45#; used where repeated reuse matters. |
| Class 10.9 bolt | Quenched and tempered alloy steel bolt used in the climbing cone set. Not electroplated without a documented baking cycle. |
| QT450-10 | Ductile (nodular) iron with 450 MPa tensile and 10% elongation. Used for sleeves and embedded plates where toughness and castability matter. |
| HRB400 | Hot-rolled ribbed bar (threaded steel) to Chinese standard. Used for embedded foot bolts; good bond with concrete. |
Applications
Procurement Guide
- Confirm required adjustment range
- Check load with system supplier
Procurement Information
- OEM / Custom
- Own drawing or label welcome
- MOQ
- Trial orders OK · mixed SKU welcome
- Lead time
- Stock 3d · Custom 7-15d
- Packaging
- Seaworthy: pallet + strapping + waterproof
- Payment
- T/T · L/C at sight
- Incoterms
- FOB Tianjin · CIF · CFR · EXW
Related Products
Technical FAQ
One-Side Formwork Adjustable Prop — Answers for Engineers and Buyers
Tie spacing is governed by the maximum lateral pressure of fresh concrete, which depends on pour rate, concrete temperature, slump and wall height, plus the allowable load of the rod, the waler and the panel facing. Spacing must be calculated per pour, not copied from a previous project.
